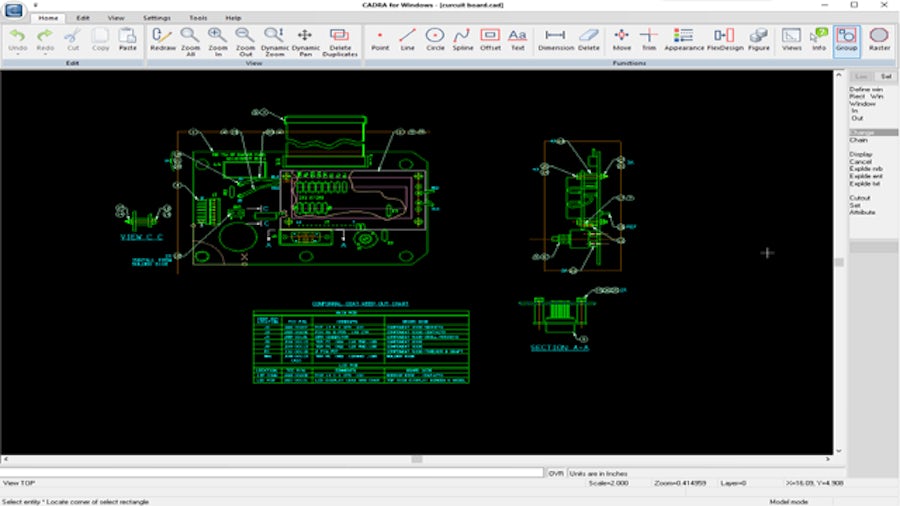

CADRA Design Drafting
CADRA Design Drafting is a full-featured mechanical design and drafting program. Emphasis is on productivity to produce industry-standard detail, layout, assembly drawings, and technical illustrations CADRA 2.5D Design Drafting has full 3D wireframe and 3D bidirectional integration. CADRA is
simple to use, accurate, well connected, robust, and cost-effective.
The efficient drawing productivity brought to your desktop by CADRA allows exploration time for iterations, innovations, and clarity, which leads to improved product quality and faster time to market. CADRA provides an overall cost-effective ownership experience, with its integration into other CAD tools and availability on fresh hardware and operating systems.
