How-to Extract Nets in DESIGNrev High-Capacity (HC) mode

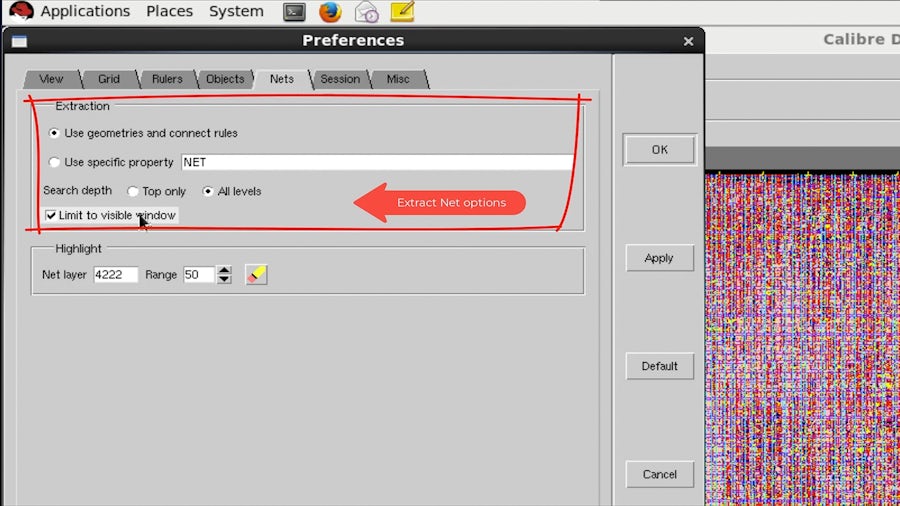

Learn how to use the Extract Net feature in Calibre 2022.2 and later, to extract nets faster in both normal mode and HC mode, enabling net extraction on much larger designs in HC mode.
DESIGNrev Extract Net can help extracting the nets you are interested in during debug or design process but this feature is only available in DESIGNrev normal mode in Calibre 2022.1 and older releases. Since Calibre 2022.2, Extract Net feature can extract net faster and work in both normal mode and HC mode so you can extract nets on much bigger design in HC mode.
Our Calibre® How-To video series is designed to provide quick and easy solutions to your common problems and questions. The Calibre® product suite is designed to integrate with all major EDA design tools you use in your IC design flow.
